Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q

Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q
Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q

Duży Obraz :  Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: OEM
Model Number: WRR-433Q

Zapłata:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Szczegółowy opis produktu
High Light:

s type thermocouples

,

temperature measurement thermocouple

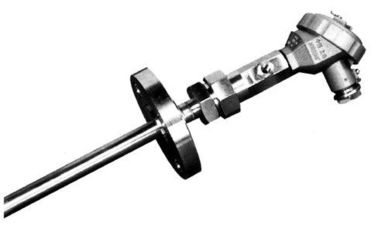

Waterproof Custom Blow Air Thermocouple Magnetic Level Gauges WRR-433Q





Blow air thermocouple



blow air thermocouple structure theory is that there is a certain gas path between the armored thermocouple and protection tube. Users need input inert gas with certain pressure to eliminate or reduce the gas penetration under the high- temperature, high- pressure conditions. If you add tantalum, it will increase the suction characteristics of blowing-type thermocouple and extending the life of armored thermocouple. It is a key temperature sensor for ammonia completed device.



W
Temperature Instrumentation
R
thermocouple
Material of thermocouple
structure
Junction Box Type
Protection tube diameter
Installation Type
    R)Platinum and rhodium 30- Platinum and rhodium 6
4)
fixed-flange
3)
water-proof
3) Ø20
Q)
blow-type







type model graduation Range(℃) gas-filled pressure Mpa specification
total length
L(mm)
placed- depth
l(mm)
Diameter
d(mm)
Platinum and rhodium 30- Platinum and rhodium 6 WRR-433Q B 800-1100 0.1
650
850
900
500
700
750
ø20
