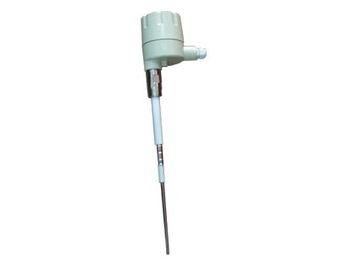

High Temperature Magnetic Level Gauges Radio Frequency Level Controller

High Temperature Magnetic Level Gauges Radio Frequency Level Controller

  • High Temperature Magnetic Level Gauges Radio Frequency Level Controller
High Temperature Magnetic Level Gauges Radio Frequency Level Controller
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: OEM
Model Number: L2000C-XXX
Zapłata:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Kontakt
Szczegółowy opis produktu
High Light:

s type thermocouples

,

high temperature thermocouple

High Temperature Magnetic Level Gauges Radio Frequency Level Controller







●Working Principle
      Based on the principle of conductivity, the probe and the tank wall can serve as the two poles,the air and the insulated element becomes the medium in this situation. When the level of material rise to the probe, the medium air will be substituted by material, so the dielectric constant would be changed. As the dielectric constant of material is larger than that of air (=1), which will change the conductivity and impedance at the main time, the circuit board of L2000C will detect the change and enlarge it, by compare with the reference point, the circuit will generate a relay output accordingly.
      The set of reference point is important for the unit generate a correct output.
      Based the technical of RF, a radio frequency will be sent to the working
element and the guard element, which will cut off the current generated by the adhered material on the element.
      By this way, the probe can measure the level of material without the influence of adhered material.

●Description
      L2000C is designed and produced based on the technology of Princo’s point level controller. The technique of adhering proof circuit can ensure the accurate measuring of actual level of material. With the technique of surface sealing, the L2000C can work more reliable.
      The standard probe of L2000C is L863C, of which the diameter is10mm, and the length of guard element is 150mm, the total length of the probe is 450mm. The flat probe L890C is suitable for measuring massive material which can avoid the damage of probe pole caused by material wallop. And, L863WC flexible wire probe and L864C probe for high temperature are available.

●Features
■Suitable for wide application: can be used to measure almost all kinds of material, fly ash, grain, powder, liquid, slimy material, electric material and non-electric material.
Adhering proof circuit: ignore the effect of adhered material.
■ Easy-on probe: No wire used to connect the probe and the controller, which allow the user remove it easily.
■ Suitable for application of high temperature and low temperature: -184℃ to 260℃, high temperature probe also be available.
■ Large output capacity: 2.5A/230VAC, or 5A/26VDC relay, with status light, time delay for 0~30 seconds.
■ Technic of surface sealing: Anti-vibration, ensure the steady work of circuit board.
■ Technic of hydraulic pressure: Strength the probe for pressure
■ Warranty: Ten years

●Model: L2000C-XXX (See the specification for detail)

● Specifications
Relay:DPDT contacts rated at 7.5A, 115VAC or 7.5A, 28VDC
Time Delay:0 to 30 seconds, field changeable
Power Supply:220VAC or 24VDC
Power:3 watts
Sensitivity:0.3pF~800pF
Process Temperature:-184℃ to 260℃
(Ceramic probe can be chose for temperature exceed 260℃)
Operating Temperature:-40℃ to 66℃
Fail-safe Mode:Fail-safe low level or high level, field changeable.
Electronics Housing:Heavy duty cast aluminum housing,IP65

●Probe Specifications
Mounting Screw:1"NPT
Material:SS,
Wetted Part Material:SS
Electrical Conduit Connector:PG11 or 3/4"NPT
                                             For Ex-proof:1"NPT
Relation between Operating Pressure and Temperature:70kg/cm2@-184℃
                                                                                                              70kg/cm2@38℃
                                                                                                              31.5kg/cm2@149℃
                                                                                                              24.7kg/cm2@205℃
                                                                                                              0kg/cm2@260℃


RF level controller of high temperature type, anti-corrosive type, with cable probe or plate probe can be optional.
