| Place of Origin: | China |
| Nazwa handlowa: | OEM |
| Model Number: | W39-10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Cena: | contact |
| Packaging Details: | Carton box |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 300PCS / month |
| High Light: | digital rpm indicator,speed measuring instrument |
||
|---|---|---|---|

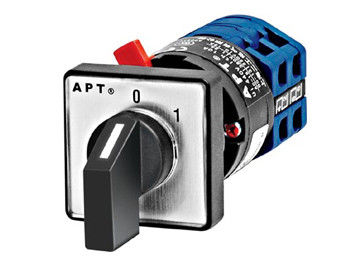

Single-Hole Digital Speed Indicator , Cam Subminiature Change-Over Switches
LW39-10 subminiature change-over switches are widely applicable to the places with quite small installation space. The single-hole installation method same with that of LA39 series of buttons is used with the installation hole diameter of 16mm or 22mm. The international popular built-in wiring method is used, which is safe and reliable. The actuation head is designed with the sealing element and has a protection class of IP64. The gold-plated silver alloy contactors are used as contact to ensure the contact reliability under the low voltage and current.
Rated Insulation Voltage Ui:440V
Conventional Thermal Current Ith: 10A
Power Frequency Withstand Voltage: 2500V, 1min
AC Service Life: 200,000 times
DC Service Life: 100,000 times
Mechanical Service Life: 300,000 times
