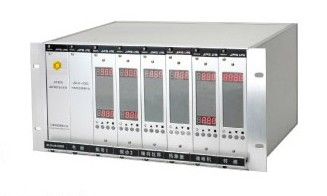

Rotating Monitoring JM-B series Protection Device , On-Line Monitoring with speed sensor

Rotating Monitoring JM-B series Protection Device , On-Line Monitoring with speed sensor

  • Rotating Monitoring JM-B series Protection Device , On-Line Monitoring with speed sensor
Rotating Monitoring JM-B series Protection Device , On-Line Monitoring with speed sensor
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: OEM
Model Number: JM-B-6000
Zapłata:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
Kontakt
Szczegółowy opis produktu
High Light:

electronic measuring devices

,

turbine speed sensor

Rotating Monitoring JM-B series Protection Device , On-Line Monitoring

Intelligent Rotational Speed Sensor High Reliability For On-Line Monitoring









Functions



1. Highly Intelligent, all parametera can be set on a control panel.

2.Suitable for on-line monitoring for a lon time, easy to install and debug, needing no site maintenance.

3.With modular structure, each module has a microprocessor, the system can be estabolished by any combination, the system reliability is inproved.

4.each module has a indepent 2 level alarm digital output.

5.4~20mA current analog output.

6.Real time TDM signals output.

7.Free configurations of measuring range, alarm and danger value.

8.Password protection to parameter configuration.

9.Automatice record and inquirie of maximum value.



technical parameters

1.Display mode:Digital LED display

2.Measuring range: The same as JM-B-600B on-line rotating machinely protection device.

3.Measuring accuracy: ±0.5 class, linear error≤1%FS.

4.Model channels:Dual or singel signal I/O

5.Input signals: The same as JM-B-6000B on-line rotating machinery protection device,

6.Output signals: Current output 4~20mA(load≤1KΩ)

                           2 level switch output: (DC27V/2A or AC250V/5A)

                           TWD synchronous signal ooutput (altmative)

7.Working environment: Environmental temperature: -10~65℃ (Relative hunidity: ≤85%)

8.Power voltage: AC200V/50Hz±10%

9.Installation: Disk

10.External dimension:(40×chassis instrument position +58mm)(length)×176.5mm(hight)×260mm(depth)

11.Hole size:(40×chassis instrument position +27mm(length)×176.5mm(hight)

code

channeis number

Chassis intrument position

Externai dimension(mm)

L×H×S

Hole size(mm)

L×H

01 2 4 218×176.5×260 187×176.5
02 3 5 258×176.5×260 277×176.5
03 4 6 298×176.5×260 267×176.5
04 5 7 338×176.5×260 307×176.5
05 6 8 378×176.5×260 347×176.5
06 7 9 418×176.5×260 387×176.5
07 8 10 458×176.5×260 427×176.5
08 9 11 498×176.5×260 467×176.5
09 10 12 538×176.5×260 507×176.5
10 11 13 578×176.5×260 547×176.5
11 12 14 618×176.5×260 587×176.5
