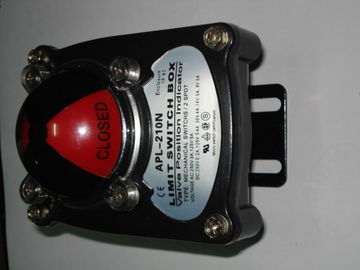

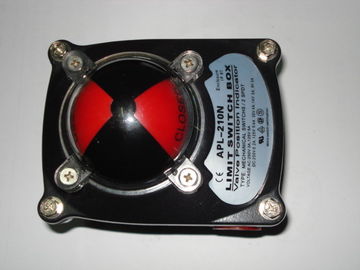

Limited switch (Positioner indicator) APL-210N

Limited switch (Positioner indicator)  APL-210N
Limited switch (Positioner indicator)  APL-210N Limited switch (Positioner indicator)  APL-210N

Duży Obraz :  Limited switch (Positioner indicator) APL-210N Najlepsza cena

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: OEM
Model Number: APL limited switch

Zapłata:

Minimum Order Quantity: 1 pcs
Packaging Details: Carton box
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 300000PCS / month
Szczegółowy opis produktu
Type: Plough control panel card INPUT: 220 VOLT AC
OUTPUT: 15V-18 V DC Model: QCK-LM(SD)
Current: AC / DC Others: main card
High Light:

coal feeder system

,

coal feeder types

Limited switch (Positioner indicator)  APL-210N



Valve postion monitor APL-2N series

  • Enclosure : Weatherproof IP67/NEMA4&4X(Standard) IP68(Option)
  • Solid and compact design
  • Bolts on visual position indicator (Re-adjustment available upon required direction)
  • Dual cable entires : 2x1/2 NPT (Standard)M20 , PG13.5, PF1/2” (Option)
  • Terminal Strips :8points( 0.08-2.5mm2)
  • Captive cover bolts
  • Easy mounting
  • Namur standard stainless steel shaft and bracket

Limit switchare activated by cams connected to the actuator shaft. When activated, they send discrete electrical signals to indicate actual valve position, usually confirming that a valve fully opened or closed operated remotely. In addition, these signals can be used as interlocks in a control system. For example, locking out a pump until its supply valve has been opened. Mechanical switches should be housed in an enclosure (Switchpak), which will also provide visual position indication. Proximity (magnetically latching switches) are hermetically sealed which makes them less susceptible to moisture intrusion. Select the appropriate switch type and area classification.

Limited switch (Positioner indicator)  APL-210N 0

Limited switch (Positioner indicator)  APL-210N 1

Limited switch (Positioner indicator)  APL-210N 2Limited switch (Positioner indicator)  APL-210N 3

Limited switch (Positioner indicator)  APL-210N 4
