Name: XDH series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 ignite rod spark rod high voltage cable
Brand: OEM
SKU: XDH-20
Price: 1 USD
Availability: InStock
Rating: 4.7 (114 reviews)

Dom Produkty Wysokowydajny układ zapłonowy

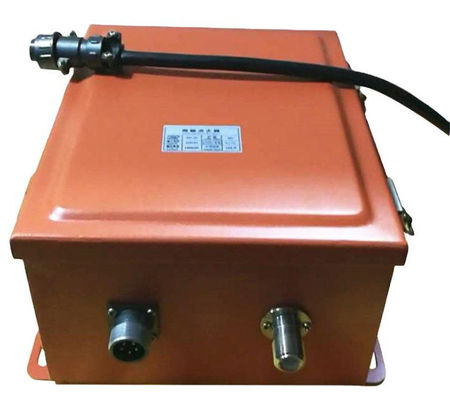

XDH series XDH-20C High-Energy Ignition Device AC 220V XDZ-1 ignite rod spark rod high voltage cable

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	OEM
Numer modelu:	XDH-20

Zapłata:

Minimalne zamówienie:	1 zestaw
Szczegóły pakowania:	Drewniane pudełko do pakowania
Zasady płatności:	T / T
Możliwość Supply:	200

Kontakt

Szczegółowy opis produktu

Napięcie:	220 V ± 10% 50/60 Hz	Energia:	20J
Częstotliwość iskier:	12-14 razy / S	Rozmiar ramki:	300 * 200 * 120

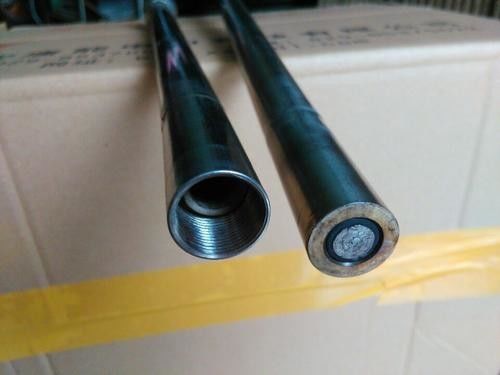

pręt zapłonowy:	M18 * 1,0 M18 * 1,5 M27 * 1,5	Temperatura:	1300 ℃
Rod dia:	Φ16 Φ18

Portable High Performance Ignition System Hea Box for XDH High-Energy Ignition Device Assembly DC 12V, AC 220V

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head

2,Technical advantages and honor- Low ignition voltage；- Good temperature resistance；- Safety and reliability, strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage；
- Good temperature resistance；
- Safety and reliability, strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

Product model and series

1. Product series

Sr.	Model	Description
1	XDH-1G	High pressure gap ignitor
2	XDH-2Z	DC charging portable ignition
3	XDH-6B	explosion-proof high-energy ignition
4	XDH-6L	Portable high-energy ignition
5	XDH-12T	Portable high-energy ignition
6	XDH-20B	explosion-proof high-energy ignition
7	XDH-20C	high-energy ignition
8	XDH-20L	high-energy ignition
9	XDH-50	high-energy ignition

【Note】As the series of products still cannot meet the requirements of users, according to the demand of design.

1. basic configuration:(leave)

2. Performance parameters

Various types of igniter performance:

Parameter name	Unit	Data
Parameter name	Unit	NDH-2Z ignition	NDH-6 series ignition	XDH- 20 series ignition	XDH-50 ignition
Energy storage	J	2	10	20	50
Working voltage	V	DC12	AC220
Output voltage	VDC		2500±5％
Spark frequency	(Times / sec)	1～3	2～10 Adjustable	7～17	2～10 Adjustable
Duty cycle (on / off)	S	30/60	120/60	300/60	120/60
