Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button

Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button

  • Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button
Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button
Szczegóły Produktu:
Miejsce pochodzenia: China
Nazwa handlowa: OEM
Numer modelu: LA39-B
Zapłata:
Minimalne zamówienie: 1
Cena: contact
Szczegóły pakowania: Carton box
Czas dostawy: 10 days
Zasady płatności: T/T
Możliwość Supply: 300PCS / month
Kontakt
Szczegółowy opis produktu
High Light:

digital rpm indicator

,

speed measuring instrument

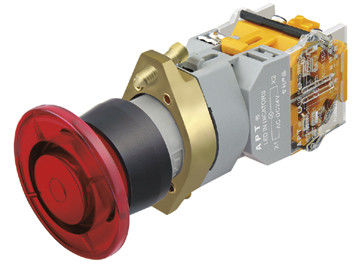

Plastic Actuation Head Digital Speed Indicator 50hz With Φ22.5mm Reset Button









Plastic actuation head is beautiful and economic, with hole diameter of φ22.5mm;
The customers can select the contact combination types as per their requirements with maximum six pairs of contacts. The leaf spring type actuation mechanism is adopted with the contact self-cleaning function and reliable contact;
Complete specifications, including reset buttons, self-locking buttons, illuminated buttons, mushroom buttons, knobs, key buttons and emergency stop buttons etc.
Three types of installation methods: to be installed with the inclined screws to prevent looseness, straight screws to save the installation space, and simple nuts;
The luminous body of the illuminated button applies pure super bright LED with the lightness above 100cd/m2;
The mechanical service life of the button is above 3,000,000 times; the continuous illumination life of the illuminated buttons is above 100,000 hours;
The symbol leaf or label frame can be provided according to the requirements of the operation instructions from the customers;



Technical Parameters

Rated Insulation Voltage: AC660V 50Hz
Power Frequency Withstand Voltage: AC1890V
Conventional Thermal Current: 10A
Mechanical Service Life: 3,000,000 times for normal buttons, mushroom buttons and illuminated buttons
300,000 times for knobs, compact buttons, two-position buttons and self-locking buttons
50,000 times for key buttons and emergency stop buttons
Electrical Service Life: 600,000 times
Ambient Temperature: -25℃~55℃
Storage Temperature: -30℃~70℃
Action Frequency: 1,200 times/hour
Production Certification: CCC, CE, RoHS
Compliance Standards: IEC 60947 / GB 14048.5
Protection Class: IP54, custom-made IP65, to be IP67 after F1 protective cover is installed;Key Button IP54
