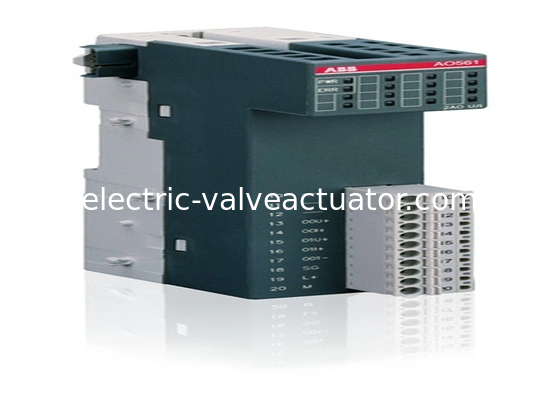

AO561 1TNE968902R1201 S500 PLC Output Card Analog Output Mod 2AO U/I 12bit 24VDC 2 Wire

AO561 1TNE968902R1201 S500 PLC output card Analog Output Mod 2AO U/I

General Information
Extended Product Type:AO561
Product ID:1TNE968902R1201
ABB Type Designation:AO561
EAN:6943747170183
Catalog Description:AO561:S500,Analog Output Mod.2AO U/I
Long Description:AO561:S500,Analog Output Mod.2AO U/I 12bit,24VDC,2-wire.

Additional Information
ABB Type Designation:AO561
Ambient Air Temperature:Operation 0 ... +60 °C
Storage -40 ... +70 °C
Analog Outputs:2
CN8:85371091
Connection Type:Pluggable
Country of Origin:China (CN)
Germany (DE)
Customs Tariff Number:85371091
Degree of Protection:IP20
EAN:6943747170183
EPLAN Catalog Tree:Electrical engineering / PLC / PLC output card analog
ETIM 7:EC001420 - PLC analogue I/O-module
ETIM 8:EC001420 - PLC analogue I/O-module
Gross Weight:0.22 kg
I/O Option:eCo-IO module with Onboard IO - 2AO

Invoice Description:AO561:S500,Analog Output Mod.2AO U/I
Made To Order:No
Maximum Operating Altitude Permissible:2000 m
Maximum Order Quantity:25 piece
Minimum Order Quantity:1 piece
Mounting Position:Horizontal, Vertical possible with derating
Mounting Type:DIN rail and panel mounting
Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Number of Analog Configurable I/Os:0
Order Multiple:1 piece
Primary Voltage:24 V
Product Main Type:AO561
Product Name:Distributed Automation I/Os
Product Net Depth / Length:135 mm
Product Net Height:74 mm
Product Net Length:135 mm
Product Net Weight:0.118 kg
Product Net Width:34 mm
Product Type:PLC-AC500-eCo
Programming Software:AC500 Control Builder PS501-PROG
Quote Only:No
Selling Unit of Measure:piece
Short Description:AO561:S500,Analog Output Mod.2AO U/I
Stocked At (Warehouses):Menden, Germany
Singapore, Singapore
Hangzhou, China
UNSPSC:32151705
WEEE B2C / B2B:Business To Business
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
eClass:27-24-22-02
