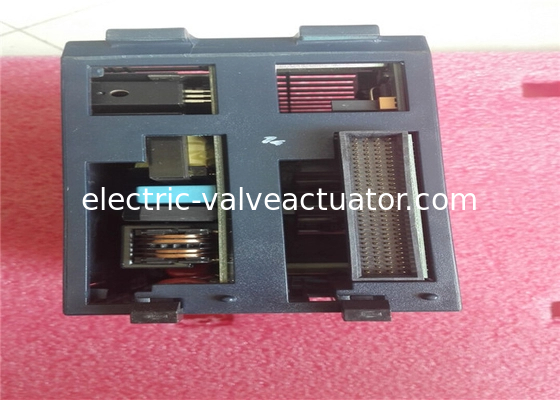

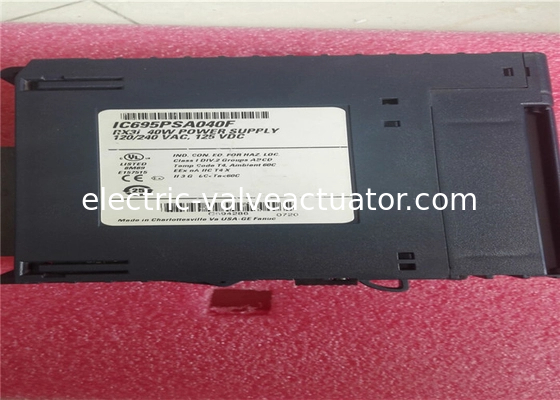

125V 40W PLC Programmable Logic Controller IC695PSA040F GE Fanuc Power Supply

Nazwa marki:	GE
Numer modelu:	IC695PSA040(F)
MOQ:	1
Cena £:	Negocjowalne
Warunki płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Zdolność do zaopatrzenia:	In Stock

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Place of Origin:

USA

Orzecznictwo:

Packaging Details:

New Original Box

Supply Ability:

In Stock

Opis produktu

Detailed Product Description

Brand:	GE	Model:	IC695PSA040(F)
Place Of Origin:	USA	Product Name:	Power Supply
Number Of Slots:	2	Max Power:	70W
Power:	40W	Current:	125V
Highlight:	industrial programmable controller , industrial automation using plc

PLC Programmable Logic Controller GE Fanuc IC695PSA040F RX3i PacSystem IC695PSA040 power supply

Product Description

The IC695PSA040 is a 120/240 volt AC or 125 volt DC, 40 Watt Power Supply from the GE Fanuc RX3i Series. See specifications for this unit on IC695PSA040's website page.

Technical Specifications

Output Power: 40 Watts max
Output Voltage: 24 VDC, 5.1 VDC or 3.3 VDC
Output Current: 0-1.6 A, 0-6 A, or 0-9 Amps

Rated Voltage: 120/240 VAC or 125 VDC
Input Voltage Range: 85 to 264 VAC or 100 to 300 VDC
Number of Slots: 2

Specifications

Nominal Rated Voltage Input Voltage Range AC DC	120/240 VAC or 125 VDC 85 to 264 VAC 100 to 300 VDC
Input Power (Maximum with Full Load)	70 Watts maximum
Inrush Current	4 Amps, 250 milliseconds maximum *
Output Power	40 Watts maximum total 5.1 VDC = 30 Watts maximum 3.3 VDC = 30 Watts maximum The maximum total output power available depends on the surrounding air temperature, as shown.
Output Voltage	24 VDC: 19.2 VDC to 28.8 VDC 5.1 VDC: 5.0 VDC to 5.2 VDC (5.1 VDC nominal) 3.3 VDC: 3.1 VDC to 3.5 VDC (3.3 VDC nominal)
Output Current	24 VDC: 0 to 1.6 Amps 5.1 VDC: 0 to 6 Amps 3.3 VDC: 0 to 9 Amps
Isolation (input to backplane):	250 VAC continuous; 1500 VAC for 1 minute
Ripple (all outputs)	150 mV
Noise (all outputs)	150 mV
Ride-through time	20 ms. This is the length of time the Power Supply maintains valid outputs if the power source is interrupted
Wiring Terminals	Each terminal accepts one 14 AWG to 22 AWG wire.
Current per Terminal	6 Amps
Number of Daisy-Chained PSA040 Supplies	Up to 4

Revision History

*Version*	*Date*	*Details*
IC695PSA040J	May 2013	Increases the margin of the 5V and 3.3V under voltage detectors to prevent PS faults during power-up.
IC695PSA040H	Aug. 2012	Resolves an issue with powering up under light loads.
IC695PSA040G	Jun. 2011	Hardware modification improves radiated RF susceptibility and removes the requirement to install control systems that use this product in a grounded metal enclosure to meet the EU EMC Directive.
IC695PSA040F	Sep. 2006	Hardware modification. Previous versions of this Power Supply occasionally failed to power up when installed in a 16-Slot Universal Backplane, IC695CHS016. This update resolves the issue.
IC695PSA040E	Mar. 2006	The D version of this Power Supply (IC695PSA040D) incorrectly reported that it was a PSA140 power supply, causing a Configuration Mismatch error. The E version and versions prior to D report their identification correctly.
IC695PSA040A	Oct. 2005	Initial release

FAQs

What is an IC695PSA040?

The IC695PSA040 is a 120/240 VAC or 125 VDC, 40 Watt Power Supply from the GE Fanuc RX3i Series.

From what input voltage source range does IC695PSA040 operate?

This power supply operates from an input voltage source range of 85 to 264 VAC or 100 VDC to 300 VDC.

What 3 outputs does this power supply have?

+5.1 VDC output
+24 VDC relay output that can be used to power circuits on Output Relay modules
+3.3 VDC which, is used internally by RX3i modules with IC695 catalog numbers

How many IC695PSA040's can be installed in a PACSystems RX3i Universal Backplane?

Only 1

With what can IC695PSA040 not be used?

This power supply cannot be used with other RX3i power supplies in redundant or increased capacity modes.

What do the 4 LEDs indicate?

Power (Green/Amber). When this LED is green, it indicates power is being supplied to the backplane. When this LED is amber, power is applied to the power supply, but the power supply switch is off.

P/S Fault (Red). When this LED is lit, it indicates the power supply has failed and is no longer supplying sufficient voltage to the backplane.

Over Temperature (Amber). When this LED is lit, it indicates the power supply is near or exceeding its maximum operating temperature.

Overload (Amber). When this LED is lit, it indicates the power supply is near or exceeding its maximum output capability on at least one of its outputs.

What should I do if my IC695PSA040 is not working properly?

Your IC695PSA040 may need repair .
