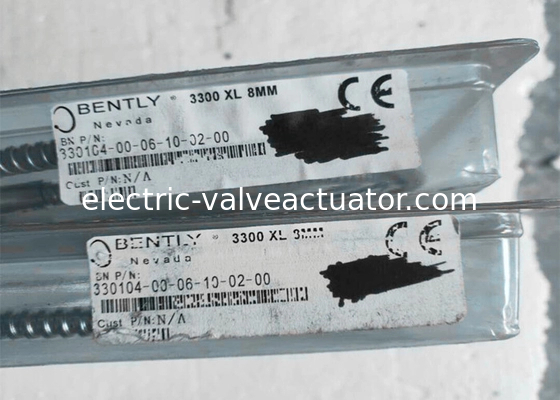

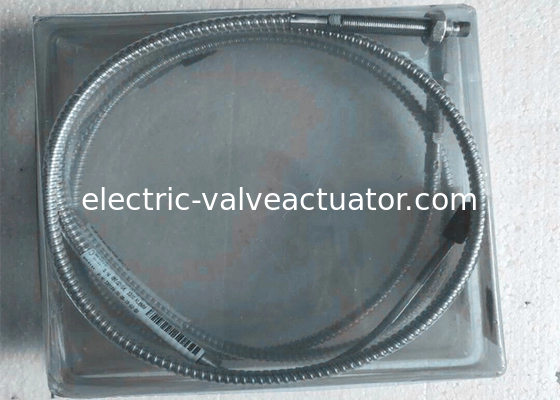

Bently Nevada 330104-00-06-10-02-00 Proximitor Probe 3300 XL 8mm Proximity Transducer

Bently Nevada Extension Cable 330130-040-01-00 4.0 meters 3300XL Armored cable NEW in stock

Ordering Information Proximity Probes

3300 XL 8 mm Proximity Probes, Metric:

330103 3300 XL 8 mm Probe, M10 x 1 thread, without armor3
330104 3300 XL 8 mm Probe, M10 x 1 thread, with armor3

Part Number-AXX-BXX-CXX-DXX-EXX

Option Descriptions

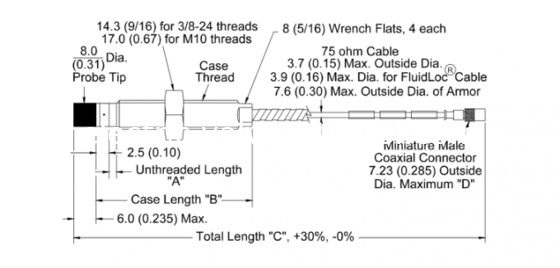

A: Unthreaded Length Option

Note: Unthreaded length must be at least 20 mm less than the case length.

Order in increments of 10 mm.

Length configuration:

• Maximum unthreaded length: 230 mm
• Minimum unthreaded length: 0 mm

Example: 0 6 = 60 mm

B: Overall Case Length Option

Order in increments of 10 mm.

Metric thread configurations:

• Maximum length: 250 mm
• Minimum length: 20 mm

Example: 0 6 = 60 mm

C:Total Length Option

05 0.5 metre (1.6 feet)
10 1.0 metre (3.3 feet)
15 1.5 metres (4.9 feet)
20 2.0 metres (6.6 feet)
50 5.0 metres (16.4 feet)
90 9.0 metres (29.5 feet)

D:Connector and Cable-Type Option

01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector,FluidLoccable

12 Miniature coaxial ClickLoc connector, FluidLoc cable

E:Agency Approval Option

00 Not required

05 Multiple Approvals

Description

Transducer System

The 3300 Proximity Transducer System consists of:

• a 3300 XL 8 mm probe or 3300 5 mm probe
• a 3300 XL extension cable
• a 3300 Proximitor Sensor

The system provides an output voltage directly proportional to the distancebetween the probe tip and the observed conductive surface. It is capable ofboth static (position) and dynamic (vibration) measurements, and is primarilyused for vibration and position measurement applications on fluid-filmbearing machines, as well as Keyphasor and speed measurementapplications.
The system provides an accurate, stable signal output over a widetemperature range. All 3300 Proximity Transducer Systems achieve thislevel of performance while allowing complete interchangeability of probe,extension cable, and Proximitor Sensor without the need for individualcomponent matching or bench calibration.

Proximitor Sensor

The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging permits high-density DIN-rail installation. It can also be mounted in a traditional panel mount configuration, where it shares an identical “footprint” to older 4-hole mounted Proximitor Sensor designs. The mounting base for either option provides electrical isolation, eliminating the need for separate isolator plates.
The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing installation in fiberglass housings without adverse effects from nearby radio frequency signals. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity. The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.

Proximity Probe and Extension Cable

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.



Models :

330130-030-00-00;330130-030-00-05;330130-030-01-00;330130-030-01-05;330130-030-02-00;330130-030-02-05;
330130-030-03-00;330130-030-03-05;330130-030-10-00;330130-030-10-05;330130-030-11-00;330130-030-11-05;
330130-030-12-00;330130-030-12-05;330130-030-13-00;330130-030-13-05;330130-035-00-00;330130-035-00-05;
330130-035-01-00;330130-035-01-05;330130-035-02-00;330130-035-02-05;330130-035-03-00;330130-035-03-05;
330130-035-10-00;330130-035-10-05;330130-035-11-00;330130-035-11-05;330130-035-12-00;330130-035-12-05;
330130-035-13-00;330130-035-13-05;330130-040-00-00;330130-040-00-05;330130-040-01-00;330130-040-01-05;
330130-040-02-00;330130-040-02-05;330130-040-03-00;330130-040-03-05;330130-040-10-00;330130-040-10-05;
330130-040-11-00;330130-040-11-05;330130-040-12-00;330130-040-12-05;330130-040-13-00;330130-040-13-05;
330130-045-00-00;330130-045-00-05;330130-045-01-00;330130-045-01-05;330130-045-02-00;330130-045-02-05;
330130-045-03-00;330130-045-03-05;330130-045-10-00;330130-045-10-05;330130-045-11-00;330130-045-11-05;
330130-045-12-00;330130-045-12-05;330130-045-13-00;330130-045-13-05;330130-060-00-00;330130-060-00-05;
330130-060-01-00;330130-060-01-05;330130-060-02-00;330130-060-02-05;330130-060-03-00;330130-060-03-05;
330130-060-10-00;330130-060-10-05;330130-060-11-00;330130-060-11-05;330130-060-12-00;330130-060-12-05;
330130-060-13-00;330130-060-13-05;330130-075-00-00;330130-075-00-05;330130-075-01-00;330130-075-01-05;
330130-075-02-00;330130-075-02-05;330130-075-03-00;330130-075-03-05;330130-075-10-00;330130-075-10-05;
330130-075-11-00;330130-075-11-05;330130-075-12-00;330130-075-12-05;330130-075-13-00;330130-075-13-05;
330130-070-00-00;330130-070-00-05;330130-070-01-00;330130-070-01-05;330130-070-02-00;330130-070-02-05;
330130-070-03-00;330130-070-03-05;330130-070-10-00;330130-070-10-05;330130-070-11-00;330130-070-11-05;
330130-070-12-00;330130-070-12-05;330130-070-13-00;330130-070-13-05330130-080-00-00;330130-080-00-05;
330130-080-01-00;330130-080-01-05;330130-080-02-00;330130-080-02-05;330130-080-03-00;330130-080-03-05;
330130-080-10-00;330130-080-10-05;330130-080-11-00;330130-080-11-05;330130-080-12-00;330130-080-12-05;
330130-080-13-00;330130-080-13-05;330130-085-00-00;330130-085-00-05;330130-085-01-00;330130-085-01-05;
330130-085-02-00;330130-085-02-05;330130-085-03-00;330130-085-03-05;330130-085-10-00;330130-085-10-05;
330130-085-11-00;330130-085-11-05;330130-085-12-00;330130-085-12-05;330130-085-13-00;330130-085-13-05
