Hydropower Lsx Water Flow Head Monitor , Turbine Flow Monitoring System

Szczegóły Produktu:

Miejsce pochodzenia:	China
Nazwa handlowa:	Hontai
Numer modelu:	LSX

Zapłata:

Minimalne zamówienie:	1
Cena:	contact
Szczegóły pakowania:	Carton box
Czas dostawy:	10 days
Zasady płatności:	T/T
Możliwość Supply:	500PCS / month

Kontakt

Szczegółowy opis produktu

High Light:

speed measuring instrument

digital panel indicator

Hydropower Lsx Water Flow Head Monitor , Turbine Flow Monitoring System

Overview

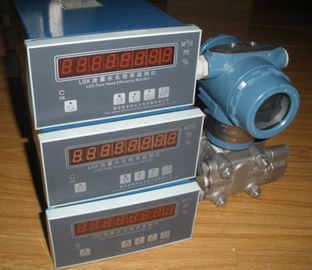

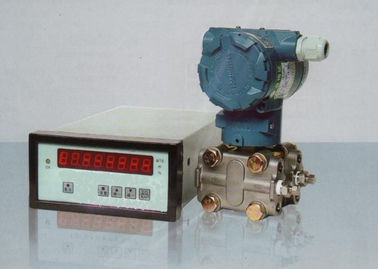

Intelligent flow head efficiency monitor is an intelligent digital instrument with single-chip microcomputer as the core processing standard signal, with three valves, pressure transmitter and measuring head transmitter and power transducer with differential pressure side flow head efficiency device (Figure 1), a turbine discharge efficiency monitoring system.

Technical parameters
- power supply: AC220V + 10% 50Hz
In the display range: instantaneous value: 0 ~ 9999.99 m3/S
Cumulative flow value: 0 ~ 99999999 Km3
Head value: 0 ~ 9999.99 Km
- measurement accuracy: + 0.5%F.S + 1 words
Environmental conditions:
Ambient temperature: 0 degrees C ~ 50
Relative humidity: less than 90%RH
The external magnetic field: less than 400 A/m: F = 20Hz, A vibration is less than or equal to 0.2mm
- output: analog: DC4 ~ 20mA (load resistance greater than 525 Ohm)
- Power: 12W
